Independently Design Ceramic PCB 2*20W COB LED Track light

Name: Independently Design Ceramic PCB 220W COB LED Track light
Brand: EWIN
Price: 12 USD

Place of Origin : china

Brand Name : EWIN

Certification : CE ROHS

Model Number : EW-TL-COB-2*20W

Light Source : LED

LED Light Source : cob chips

Warranty(Years) : 3

Input Voltage(V) : 100-277

Lamp Power(W) : 46

Lamp Luminous Flux(lm) : 4400-5000

Lamp Luminous Efficiency(lm/w) : 120

CRI (Ra>) : 82

Color Temperature(CCT) : Pure White

Working Temperature(℃) : -40 - 45

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum

color of housing : white black aluminum

power factor : 0.90-0.98

power efficiency : 0.85

track adaptor : 2-way 3-way 4-way

SDCM : <4

Frequency range : 50-60Hz

beam angle : 30 or 50 degree

Item Type : Track Lights

MOQ : 10pcs

Price : 12-72USD

Packaging Details : Box for each:280*125*250mm. Carton for 6 pcs; 62*32*28cm.

Delivery Time : usually 7-10 working days

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS/Month

Contact Now

Independently Design Ceramic PCB 2*20W COB LED Track light

Description	Brand options	Voltage	PF	CRI	Beam	Dimension mm	Netweight
10W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	80×95(lamp) 132 ×85 × 45(power box)	0.9kg
15W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	102×122(lamp) 132 ×85 × 45(power box)	1.20kg
20W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	102×122(lamp) 132 ×85 × 45(power box)	1.20kg
30W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	122×137(lamp) 178 ×125 × 60(power box)	1.75kg
40W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	Φ122 ×130mm	1.70kg

1.40W COB LED Tracklight.
2.High output:110-120lm/w.
3.CRI>82.
4.MeanWell Driver is possible.

2*20W LED COB Tracklight

Products Features:
(1)LED Brand: Epistar / Cree.
(2)PCB: Ceramic material.
(3)New Design, CRI> 82.
(4)High output: 4400-5000lm.
(5)Beam Angle:30 or 50 degree.
(6)Warranty:3 years.
(7)Life span: 50,000+hrs.
(8)Certificate: CE, ROHS, SAA.
(9)Size: φ100*H115mm.
(10)Available Color: Warm &Natural &Pure White.
(11)Dimmable:Triac is optional.
(12)After-sale service:Free replacement.

Application:

(1) Public lighting: Hospital , Museum , Plaza etc.
(2) Commercial lighting: Mall , Hotel , Restaurant , Exhibition etc.

Data Sheet:

Part No.	Color	Power	Voltage	CCT	Lumen	Size
EW-TL-COB-2*20W-PW	Pure White	40W	100-277vAC	5900K-6300K	4800-5000lm	φ100*H115mm
EW-TL-COB-2*20W-NW	Natural White	40W	100-277vAC	4000K-4500K	4600-4800lm	φ100*H115mm
EW-TL-COB-2*20W-WW	Warm White	40W	100-277vAC	2900K-3300K	4400-4600lm	φ100*H115mm

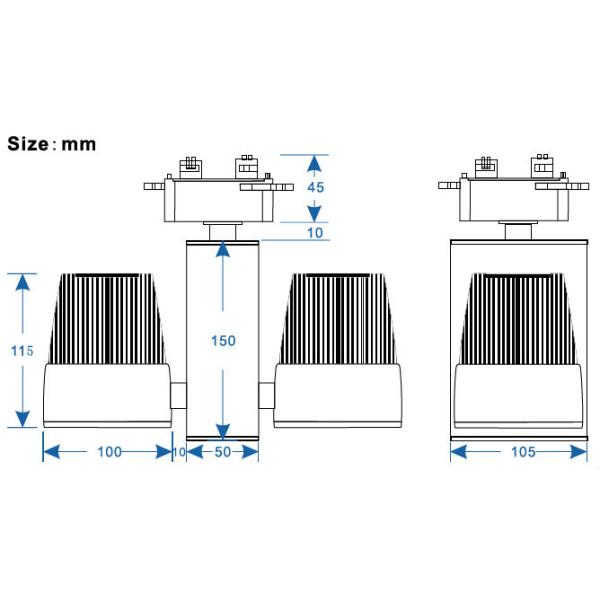

Dimension:

Independently Design Ceramic PCB 2*20W COB LED Track light

Test report: ( Note: The beam angle is only about 1/2 output of the all illuminated. )

More Pictures:

Packing&shipping

EPE Cotton and hard board protect: Independently Design Ceramic PCB 2*20W COB LED Track light n

more products

Independently Design Ceramic PCB 2*20W COB LED Track light

Packaging

Independently Design Ceramic PCB 2*20W COB LED Track light

Services and Promise

Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are welcomed, OEM brand is available.

4. Distributor ship is offered for your unique desigh and some our current models.

5. Protection of your sales area, ideas of design and all your private information.

Our quality control:
* All products must go through five checks before manufacturing process.

* Raw material full check before production.

* Full check after every individual process finished.

* Full check after production half-done.

* 500 times on and off testing after production finished.

* Full check after production packed before shipping.
